Technology

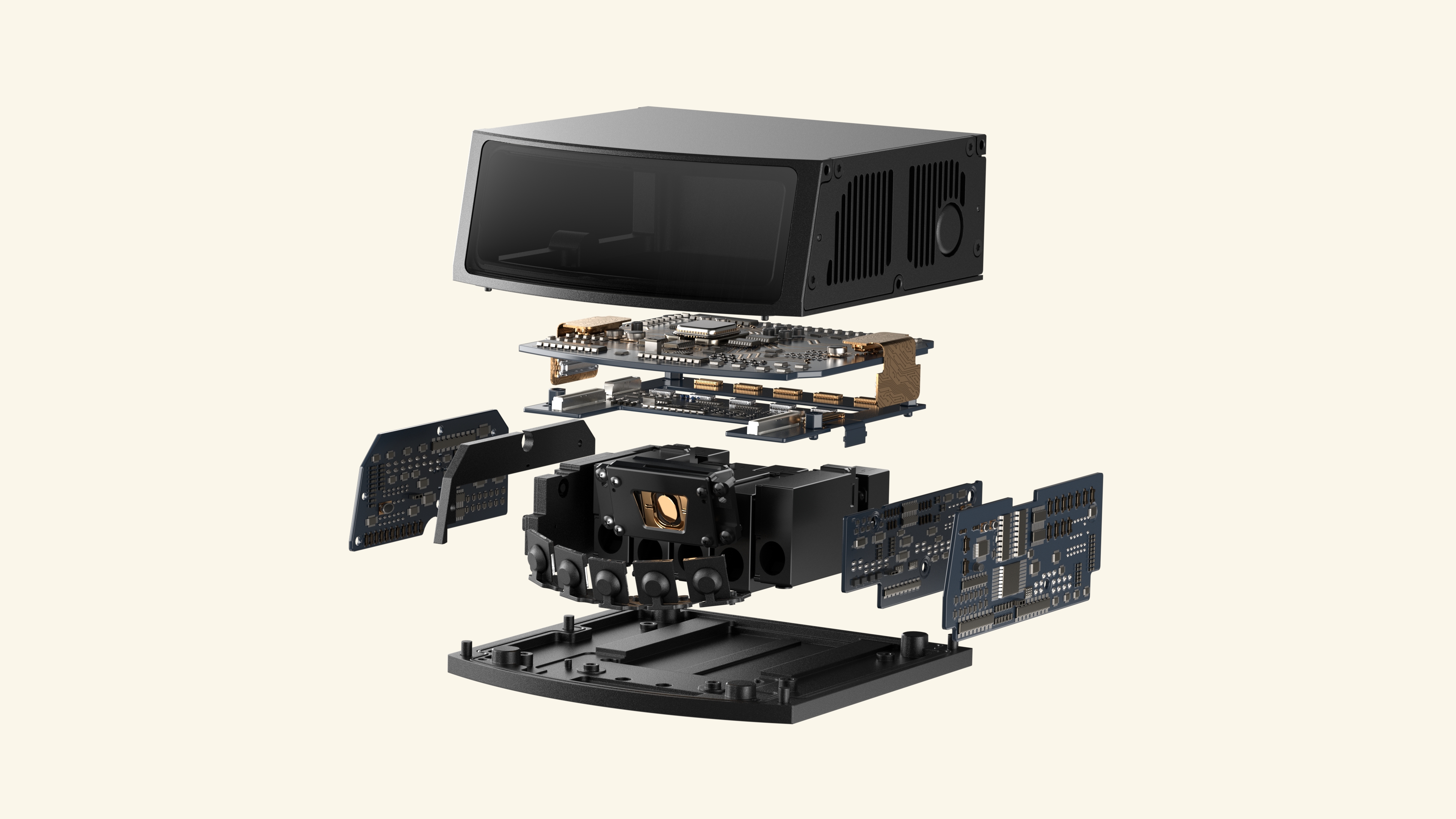

Advanced Technical Solutions and Pioneering Large-Scale Production
2D MEMS-based smart chip scanning outperforms traditional 1D motor-driven scanning
Stabilize
Up to Automotive-Grade Standard for Passenger & Commercial Vehicles
Comprehensive tests on completed products based on ISO16750, GB/T18655-2010/CISPR 25:2008, ISO 11452, ISO 7637, ISO 10605, IEC 60068 and other automotive-grade test standards were performed. In addition, RoboSense LiDAR MEMS mirror module received the AEC-Q100 certification and reliability test report issued by SGS.
Security
Functional Safety Requirements with Built-In-Self-Test
Probabilistic metric for random hardware failures <10-7/h, fully achieved the requirements of ASIL-B.
EYE SAFETY PROTECTION
Eye Safety Protection
By adopting RoboSense's innovative optoelectronic technology and functional safety real-time monitoring mechanism, M1 and M1 Plus fully meets the human eye safety requirements of international standards such as IEC60825-1 Class 1. It has been awarded human eye safety certificates by two international professional testing institutions, SGS and goebel, providing double protection for human eye safety.
High Quality
High Quality Point Cloud to Guarantee Safe Usage
Leading patented technology that solves the Corner Case of LiDAR point cloud.
Intelligence
Smart “GAZE” Function: Obstacle Avoidance in Advance
It dynamically increases the vertical resolution of the ROI area to 0.1° to spot distant obstacles earlier and give the vehicle time to respond in advance, improving the autonomous driving experience.
APPLICATIONS
Leading the Industry - Nominated Orders for More Than 60 Models
As of December 18, 2023, we had earned design wins for mass production of LiDAR products for more than 60 vehicle models with 20+ automotive OEMs and Tier 1 suppliers, ranking No. 1 globally, according to CIC.
Videos
Video



Product Specifications
Name M1 M1 Plus
# of Lines / /
Laser Wavelength 905nm 905nm
Laser Safety Class 1 eye safey Class 1 eye safey
Range 200m(150m@10% NIST) 200m(180m@10% NIST)
Blind Spot ≤0.5m ≤0.5m
Range Accuracy(Typical) 5cm 5cm
Horizontal FoV 120° 120°
Vertical FoV 25° 25°
Horizontal Resolution Average 0.2° Average 0.2°
Vertical Resolution Average 0.2° Average 0.2° (ROI: Average 0.1°)
Frame Rate 10Hz 10Hz
Points Per Second (Single Return Mode) 787,500pts/s 787,500pts/s
Points Per Second (Dual Return mode) 1,575,000pts/s 1,575,000pts/s
Ethernet Connection 1000Base-T1 1000Base-T1
Output UDP packets over Ethernet UDP packets over Ethernet
UDP Packet Include Spatial Coordinates
Intensity
Timestamp, etc.
Spatial Coordinates
Intensity
Timestamp, etc.
Operating Voltage 9 - 32V 9 - 16V
Power Consumption 15W 15W
Weight (without cabling) 750g±50g 690g±50g
Dimension 108mm(D) x 110mm(W) x 45mm(H) 111mm(D) x 110mm(W) x 45mm(H)
Operating Temperature -40°C ~ +85°C -40°C ~ +85°C
Storage Temperature -40°C ~ +105°C -40°C ~ +105°C
Time Synchronization gPTP, PTP gPTP
Ingress Protection IP67、IP6K9K IP67、IP6K9K
